The FL400A-BB-50 is a general purpose fan cooled thermal power/energy laser measurement sensor with a 50mm aperture. It can measure power from 300mW to 400W continuously and to 500W intermittently. It can measure energy from 75mJ to 600J. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

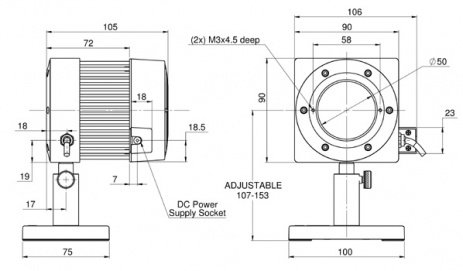

FL400A-BB-50 Drawing
| Absorber Type | Broadband |
| Aperture | ?50mm |
| Spectral Range | 0.19-20μm |
| Power Range | 300mW-500W |
| Energy Range | 75mJ-600J |
| Backscattered Power | N.A. |
| Dimensions | 90 L x 90 W x 105 D (mm) |
| Max Pulse Energy | 600J |
| Max Average Power Density | 8.5kW/cm2 |
| Response Time | 4 s |
| Max Energy Density (for <100ns) | 0.3J/cm2 |
| Max Energy Density (for 2ms) | 10J/cm2 |
| Max Average Power | 500W |
| BeamTrack Functions | N.A. |
