CS100 Barometric Pressure Sensor

Updated:2025-03-13

Brand: Campbell
Model: CS100
Description: The CS100 measures barometric pressure for the range of 600 to 1100 hPa (mBar). This range equates to from below sea level (as in a mine) up to 12,000 feet above sea level. Designed for use in environ
Data download

Feedback
WeChat

QQ

Online Service

Product Details

CS100 Barometric Pressure Sensor Description：

Product Manual Datasheet

The CS100 measures barometric pressure for the range of 600 to 1100 hPa (mBar). This range equates to from below sea level (as in a mine) up to 12,000 feet above sea level. Designed for use in environmental applications, the CS100 is compatible with all Campbell Scientific data loggers.

Detailed Description

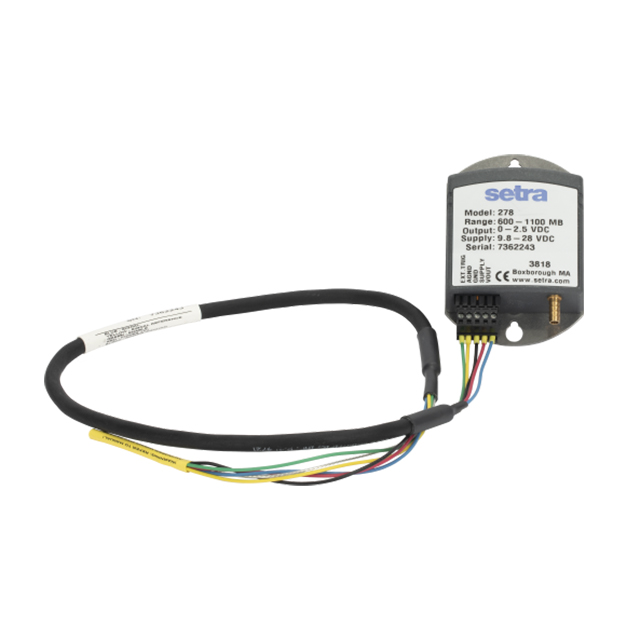

The CS100 is a Campbell Scientific version of Setra's model 278 barometer. It uses Setra’s Setraceram capacitive sensor and IC analog circuit to measure barometric pressure. The CS100 iincludes a 0.76 m (2.5 ft) cable and a terminal strip for data logger power and signal connections.

The CS100 is encased in a stainless-steel and polyester case fitted with an 1/8 in. barbed fitting for pressure connection. It includes an internal switching circuit that allows the data logger to power the barometer only during measurement, which reduces power usage.

Benefits and Features

Optimized to mount in Campbell Scientific enclosures

Low power consumption

Three-year warranty

Integral switching circuit limits power consumption to measurement cycle

CS100 Barometric Pressure Sensor Specifications：

Measurement Description	Barometric pressure
Signal Type/Output	Analog voltage
-NOTE-	1 hPa = 1 mBar
Pressure Range	600 to 1100 hPa
Long-Term Stability	±0.1 hPa per year
Response Time	< 100 ms
Resolution	±0.01 hPa
Excitation	9.5 to 28 Vdc
Elevation	~609.6 m (2,000 ft) below sea level (as in a mine) to 3,657.6 m (12,000 ft) above sea level
Accuracy	Accuracy refers to the root sum squared (RSS) of end point non-linearity, hysteresis, repeatability, and calibration uncertainty. ±0.5 hPa (@ +20°C) ±1.0 hPa (@ 0° to 40°C) ±1.5 hPa (@ -20° to +50°C) ±2.0 hPa (@ -40° to +60°C)
Linearity	±0.4 hPa
Hysteresis	±0.05 hPa
Repeatability	±0.03 hPa
Signal Output	0 to 2.5 Vdc
Warm-up Time	< 1 s
External Trigger Voltage	0 Vdc (sleep mode) 3 to 28 Vdc (operating mode)
Current Consumption	< 3 mA (active) < 1 μΑ (sleep mode)
Temperature Range	-40° to +60°C
Cable Diameter	0.8 cm (0.3 in.)
Cable Length	0.8 m (2.5 ft)
Dimensions	9.1 x 6.1 x 2.5 cm (3.6 x 2.4 x 1.0 in.)
Weight	135 g (4.8 oz)
