The 30(150)A-SV-17 is thermal power/energy laser measurement sensor with high damage threshold for both power and energy. It has a 17mm aperture and can measure from 100mW to 30W continuously and to 150W intermittently. It can measure energy from 50mJ to 300J. Its SV absorber has a damage threshold of 1J/cm2 and 60kW/cm2 for repetitive pulses and covers the spectral range from 0.19 to 11μm The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

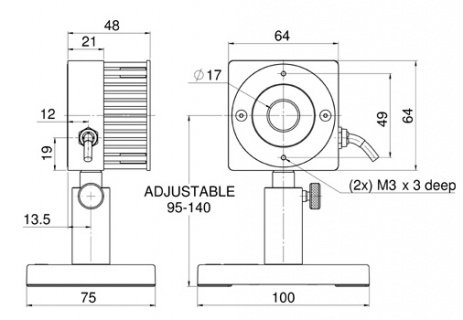

30(150)A-SV-17 Drawing
| Absorber Type | SV |
| Aperture | ?17mm |
| Spectral Range | 0.19 to 11μm |
| Power Range | 100mW-150W |
| Energy Range | 50mJ-300J |
| Dimensions | 64 L x 64 W x 48 D (mm) |
| Max Pulse Energy | 300J |
| Max Average Power Density | 60kW/cm2 |
| Response Time | 1.7 s |
| Max Energy Density (for <100ns) | 1J/cm2 |
| Max Energy Density (for 2ms) | 50J/cm2 |
| Max Average Power | 150W |
