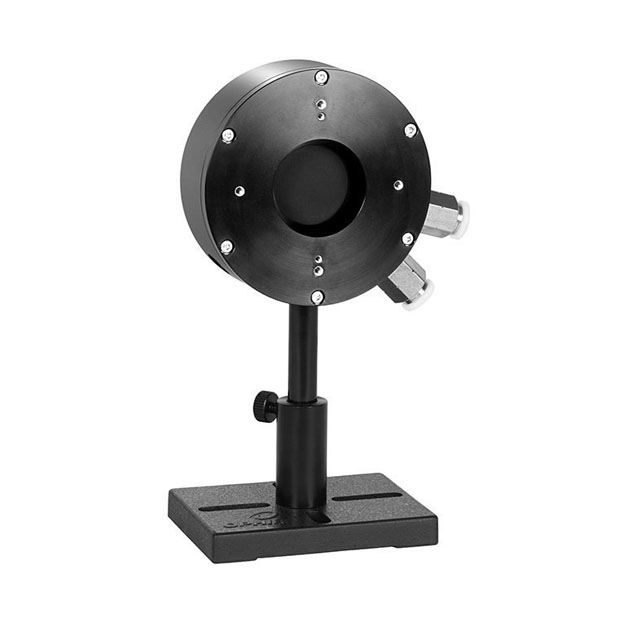

The 1000W-LP2-34 is a water cooled thermal power/energy laser measurement sensor for high power density and long pulse lasers. It has a 34mm aperture and can measure power from 5W to 1000W and energy from 400mJ to 300J. Its high damage threshold LP2 coating covers the spectral range 0.35 – 2.2μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.
1000W-LP2-34 Drawing
| Absorber Type | Broadband |
| Aperture | ?34mm |
| Spectral Range | 0.35-2.2μm |
| Power Range | 5W-1000W |
| Energy Range | 400mJ-300J |
| Backscattered Power | N.A. |
| Dimensions | ?100 W x 35 D (mm) |
| Max Pulse Energy | 300J |
| Max Average Power Density | 10kW/cm2 |
| Response Time | 2.5 s |
| Max Energy Density (for <100ns) | 0.1J/cm2 |
| Max Energy Density (for 2ms) | 130J/cm2 |
| Max Average Power | 1000W |
| BeamTrack Functions | N.A. |
| Compliance | CE, China RoHS |
